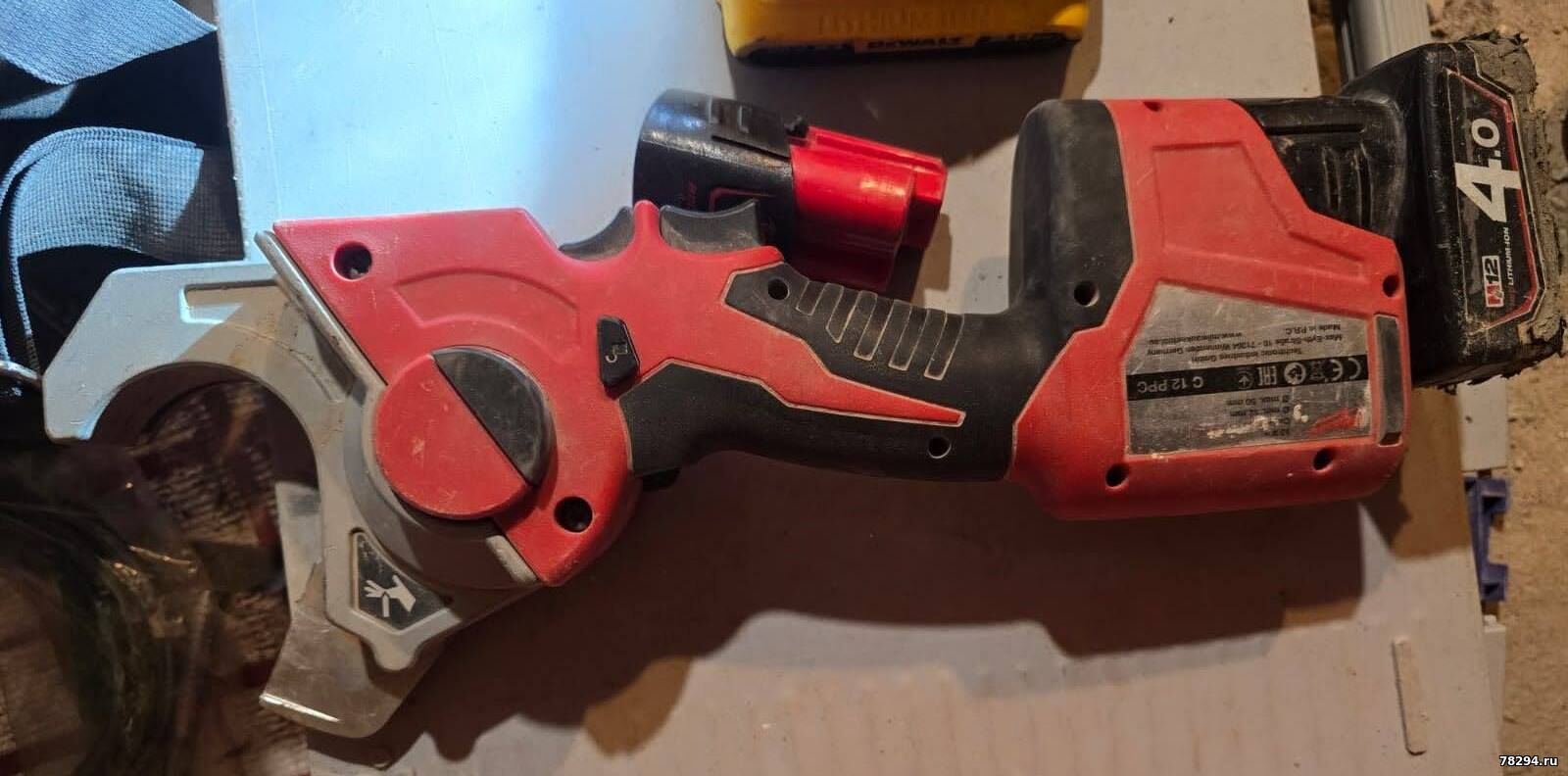

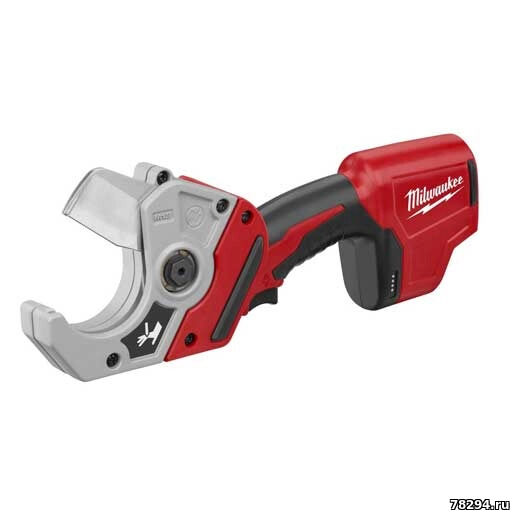

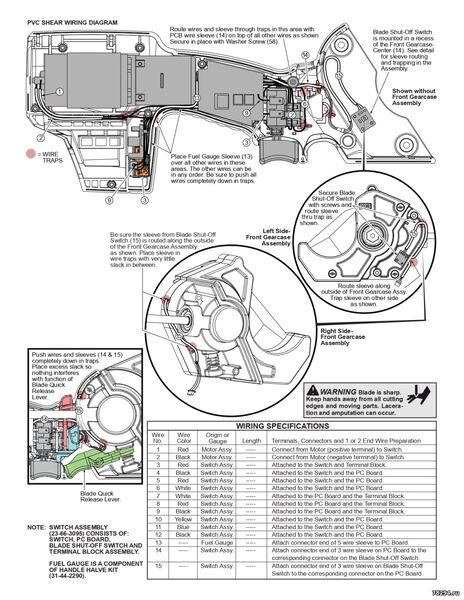

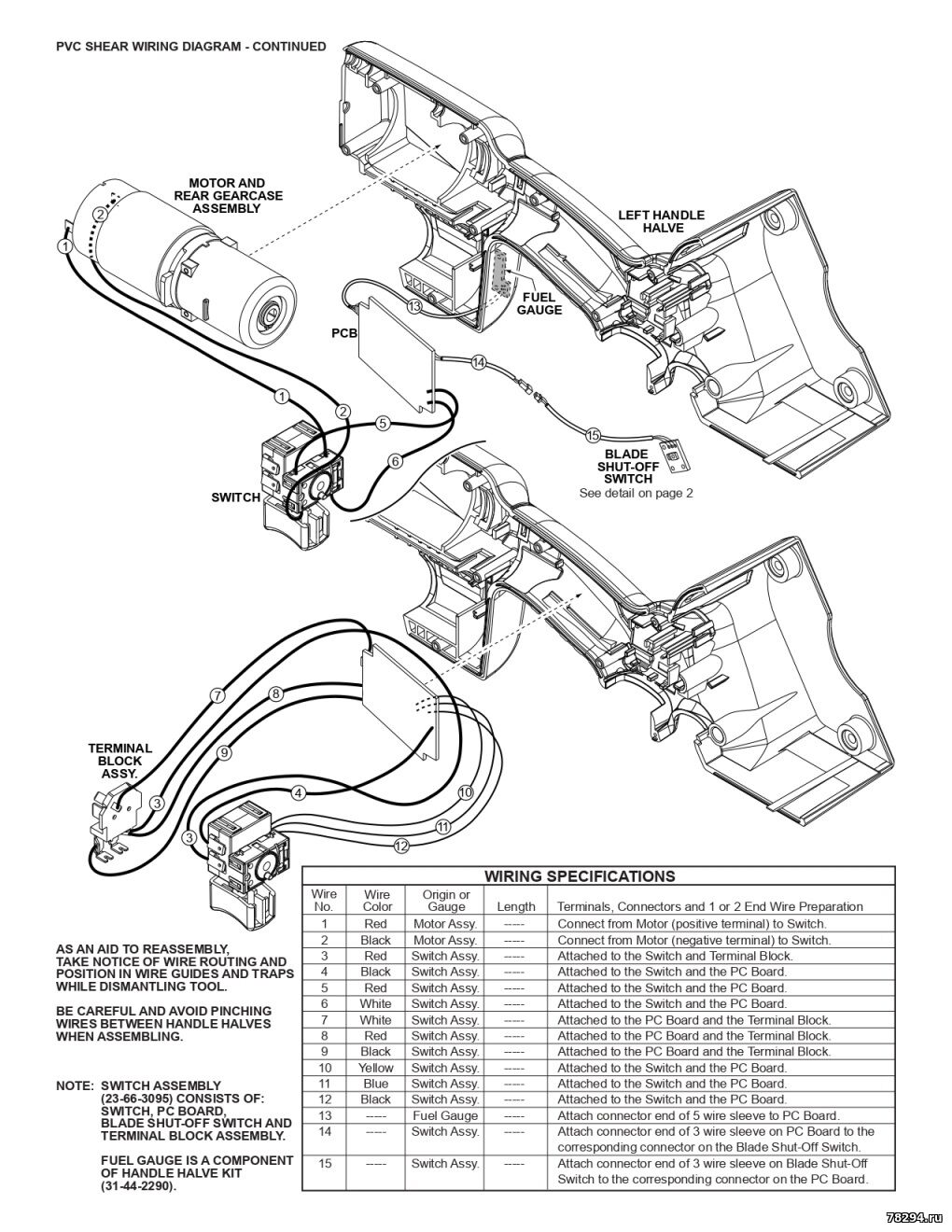

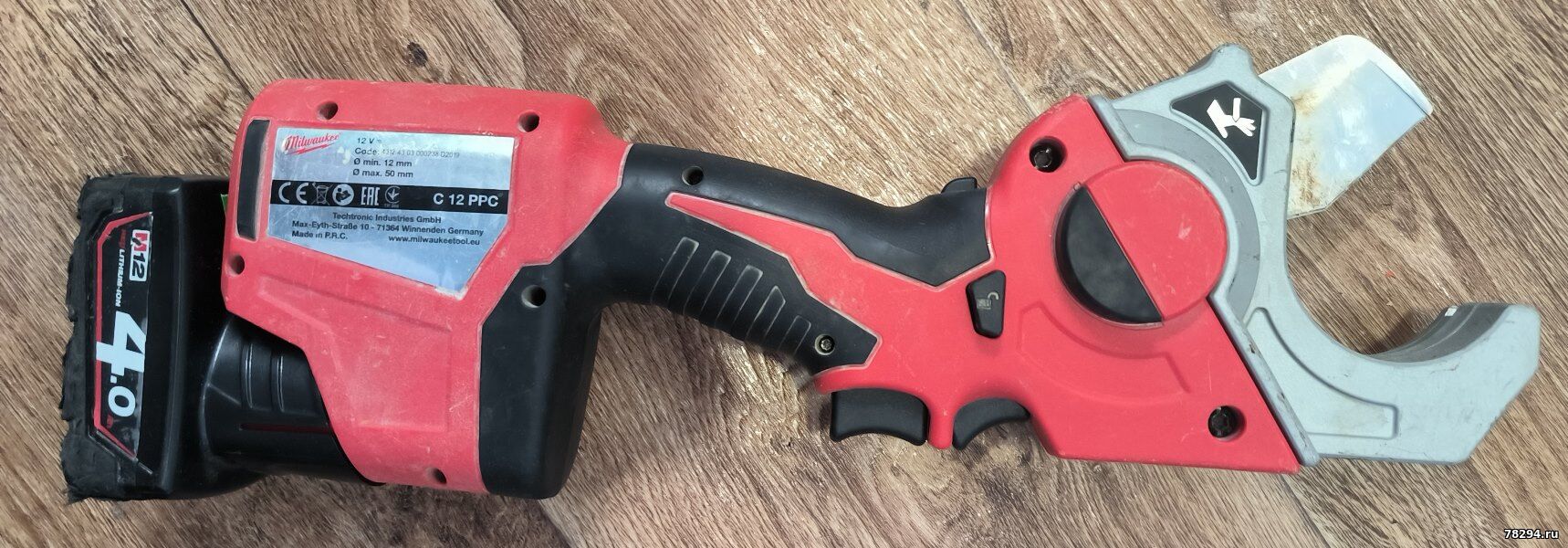

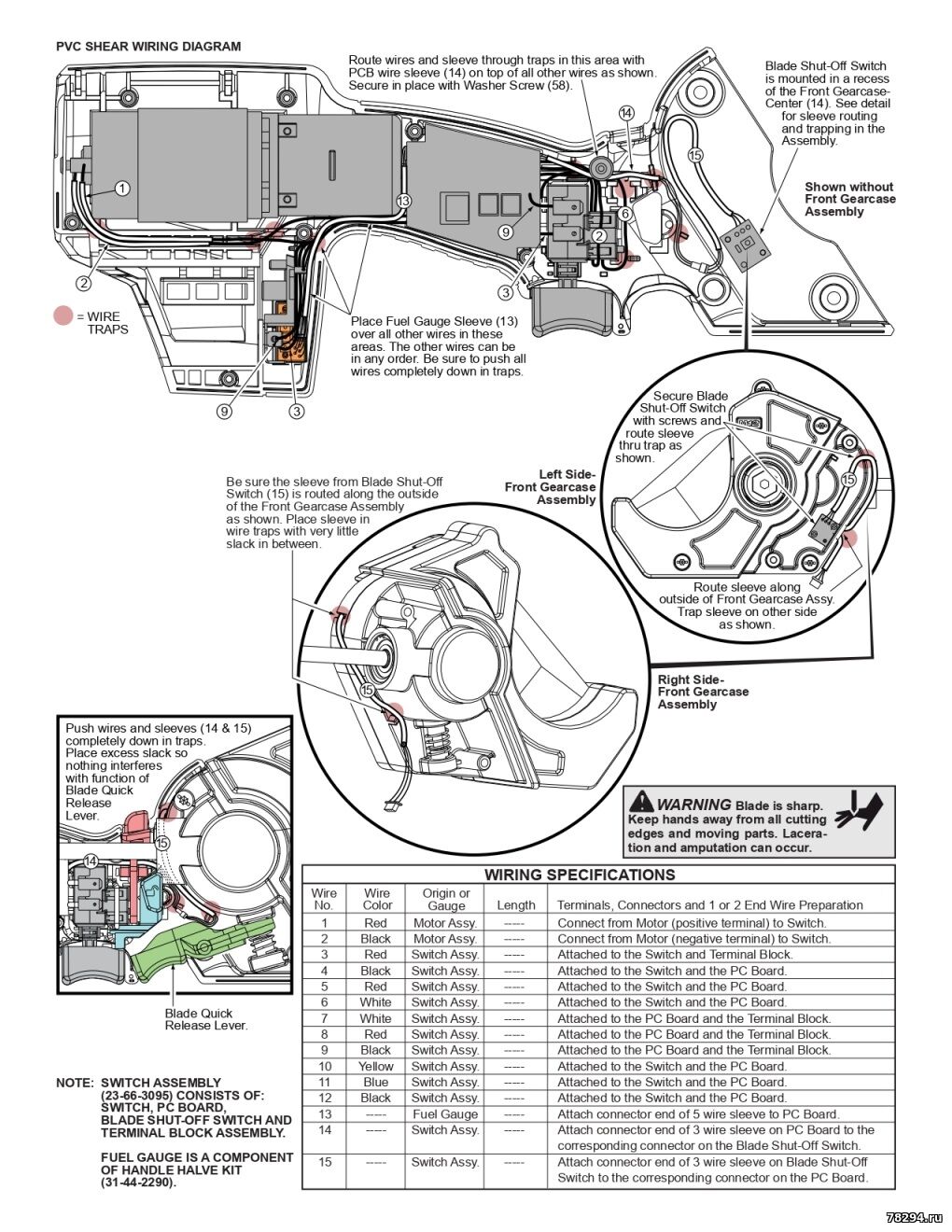

Резак Milwaukee 2470-20 M12 ремонт и схема
|
|
|
|
|
Anat78
|
Дата: Суббота, 02.05.2026, 17:23 | Сообщение # 3
|
Администраторы
Anat78
Подполковник
- Сообщений:8300
- Репутация:69±
|

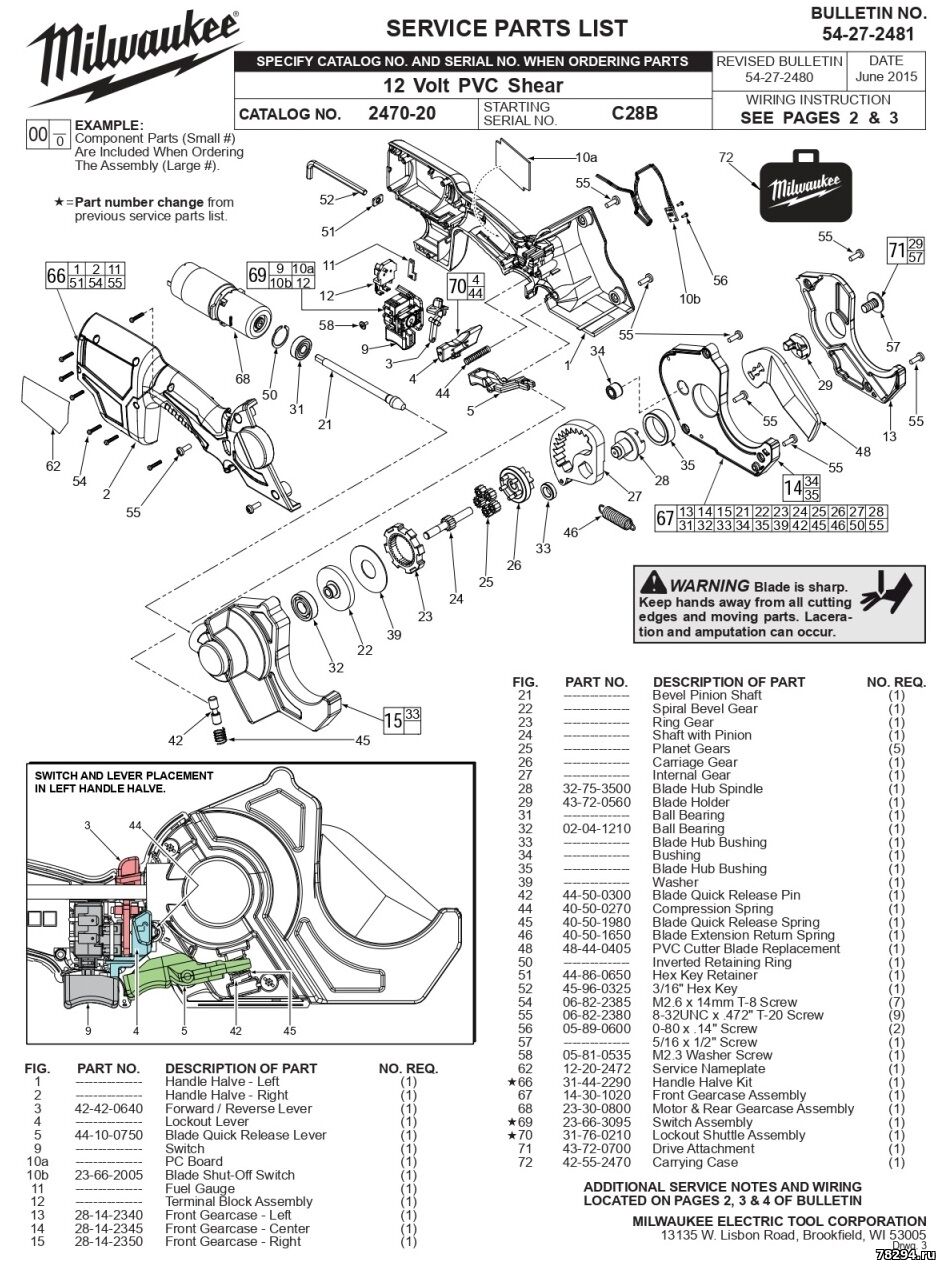

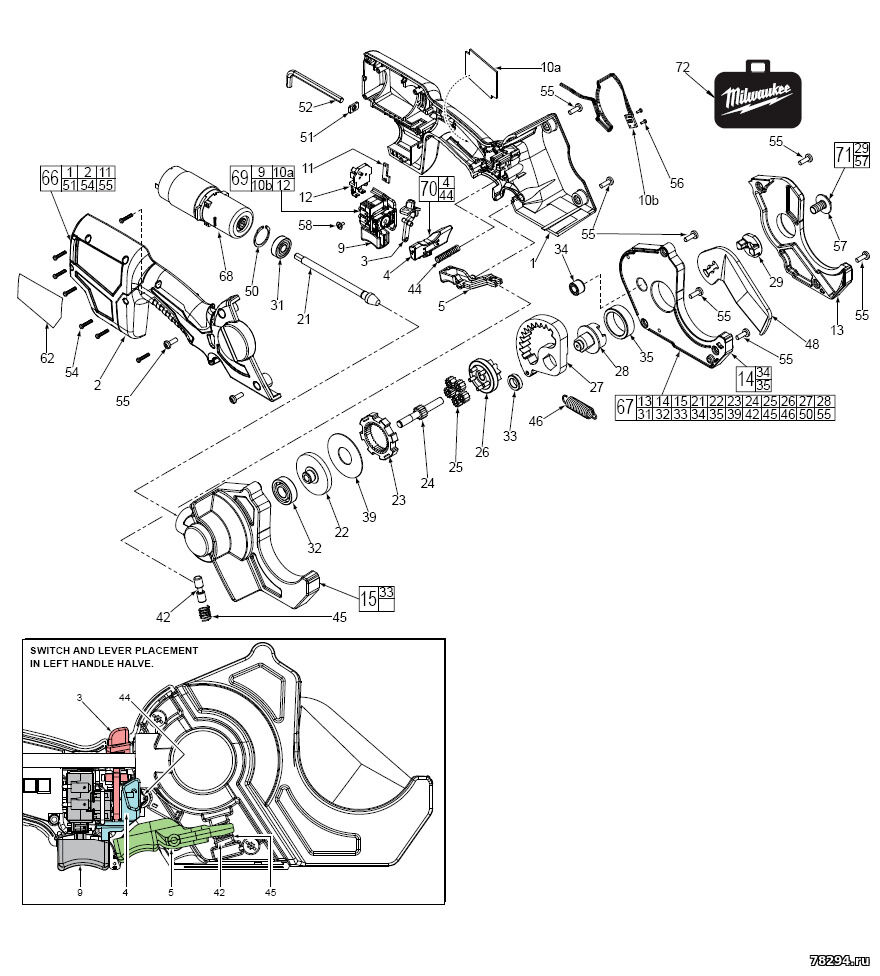

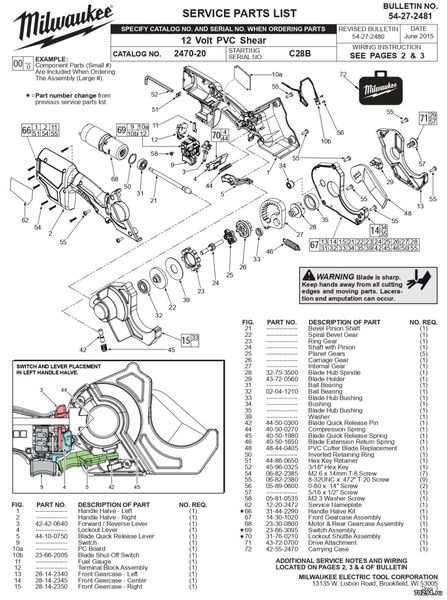

Ref Part
Figure # 3 FORWARD REVERSE LEVER
SKU: 42-42-0640
Figure # 5 RELEASE LEVER
SKU: 44-10-0750
Figure # 10a NA - PART NOT AVAILABLE
SKU: NA
Figure # 10b BLADE SHUT-OFF SWITCH
SKU: 23-66-2005
Figure # 13 FRONT GEARCASE-LEFT
SKU: 28-14-2340
Figure # 14 FRONT GEARCASE-CENTER
SKU: 28-14-2345
Figure # 15 FRONT GEARCASE-LEFT
SKU: 28-14-2350
Figure # 28 BLADE HUB SPINDLE
SKU: 32-75-3500
Figure # 29 BLADE HOLDER
SKU: 43-72-0560
Figure # 32 12X28X8 BALL BRG 2 OPN
SKU: 02-04-1210
Figure # 42 BLADE QUICK RELEASE PIN
SKU: 44-50-0300
Figure # 44 SPRING COMPRESSION
SKU: 40-50-0270
Figure # 45 BLADE QUICK RELEASE SPRING
SKU: 40-50-1980
Figure # 46 RETURN SPRING
SKU: 40-50-1650
Figure # 48 48-44-0405
SKU: 48-44-0405
Figure # 51 HEX KEY RETAINER
SKU: 44-86-0650
Figure # 52 ALLEN WRENCH
SKU: 45-96-0325
Figure # 54 M3 X 14 T-10 SCREW
SKU: 06-82-2385
Figure # 55 SCREW 8-32 1/2 PAN SL TAP TX
SKU: 06-82-2380
Figure # 56 HALL SENSOR SCREW
SKU: 05-89-0600
Figure # 58 SHIFT LEVER STL SCREW CH M2.3
SKU: 05-81-0535
Figure # 66 HANDLE ASSY
SKU: 31-44-2285
Figure # 67 FRONT GEARCASE ASSY
SKU: 14-30-1020
Figure # 68 MOTOR & GEARCASE ASSY
SKU: 23-30-0800
Figure # 69 SWITCH ASSY
SKU: 23-66-3090
Figure # 70 LOCKOUT SHUTTLE
SKU: 31-76-0200
Figure # 71 DRIVE ATTACHMENT
SKU: 43-72-0700
Figure # 72 CARRYING CASE
SKU: 42-55-2470
