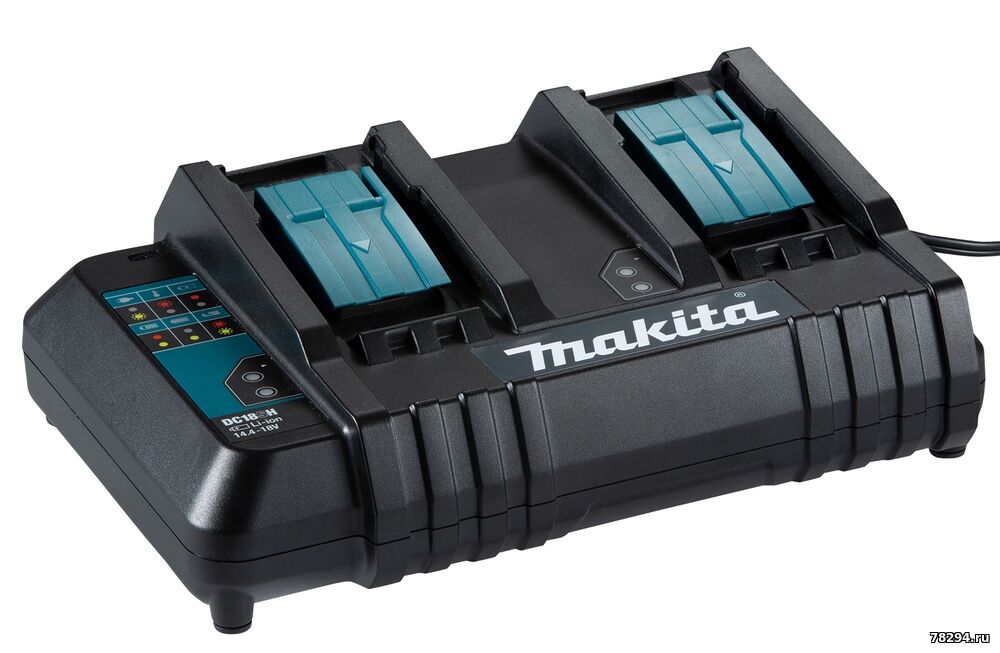

Зарядное устройство DC18SH Makita схема ремонт
Ток заряда 3А
199687-4
199688-2
0088381542470
Инструкция - https://www.icmsmakita.eu/CMS....8SH.pdf
Charging Time 1.3 Ah 30 min
Charging Time 1.5 Ah 30 min
Charging Time 2.0 Ah 45 min
Charging Time 2.5 Ah 45 min
Charging Time 3.0 Ah 60 min
Charging Time 4.0 Ah 90 min
Charging Time 5.0 Ah 110 min
Charging Time 6.0 Ah 130 min
Power Supply Cord 2,0 m
Product Dimensions (L x W x H): 197 x 295 x 95 mm
Product net weight 1,4 kg

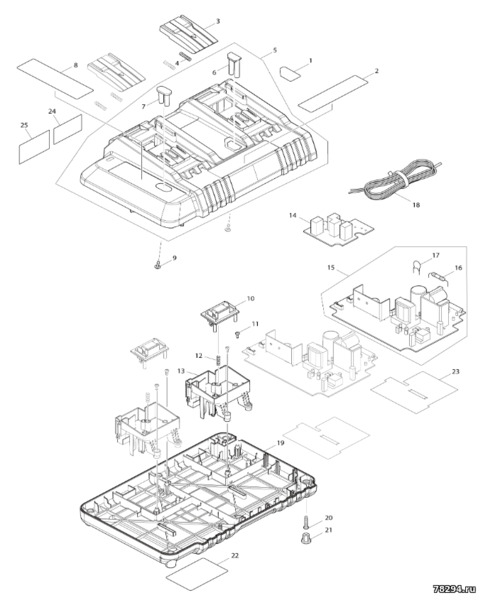

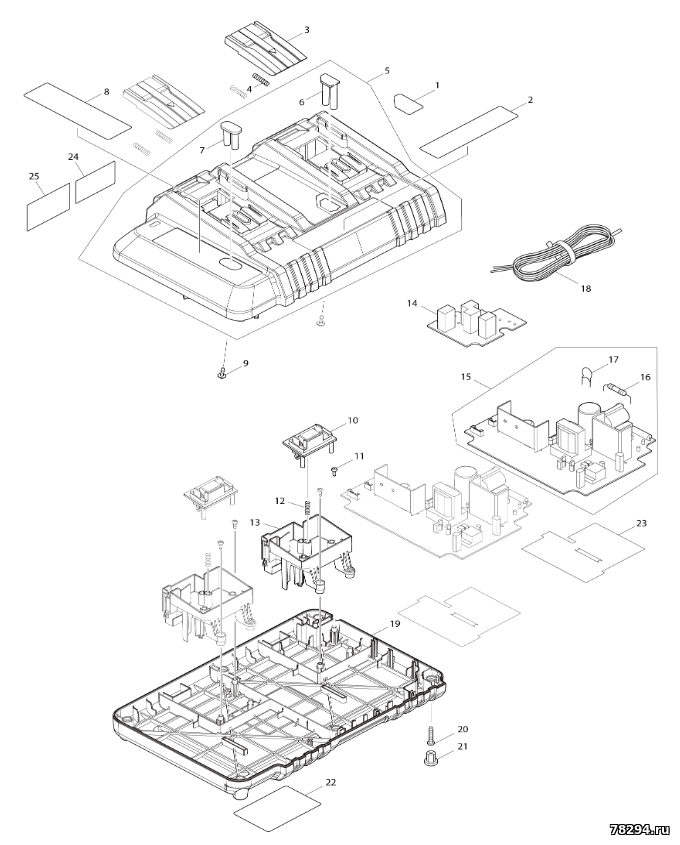

Запчасти:
Pos. Parts no. Description
1 818Y86-8 Indication label
2 818R90-5 Makita logo label
3 455546-5 Terminal cover
4 231474-6 Compression spring 4
5 140H47-1 Charger case complete
D10 INC. 6,7
6 459067-9 Lens B
7 459066-1 Lens A
8 818Y88-4 Charging condition label
9 266278-7 Flange tapping screw 3X10
10 632G53-9 Terminal unit
11 266764-8 Pan head tapping screw 3X8
12 233194-8 Compression spring 4
13 459069-5 Terminal base
14 620A20-0 Filter circuit
15 620B08-6 Charging circuit
D10 INC. 16,17
015-1 620H37-5 Charging circuit
D10 INC. 16,17
16 652067-0 Fuse
17 647070-4 Varistor
18 667747-5 Power supply cord
19 459068-7 Charger case cover
20 266346-6 Pan head tapping screw 4X20
21 286255-3 Cap 13
22 855K61-9 Name plate DC18SH
