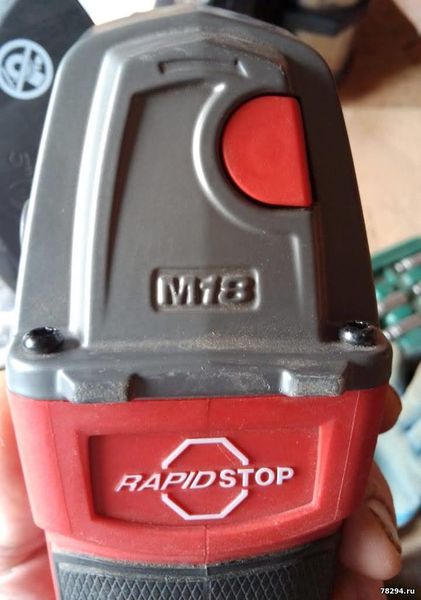

УШМ Milwaukee 2888-20 схема и ремонт
M18 FSAGV125XPDB-0X0
Защита от отбрасывания назад да
Тип выключателя Фиксируемый ползунковый выключатель
Тормоз да
Макс. глубина реза, мм 33
Напряжение, В 18
Тип аккумулятора Li-ion
Емкость аккумулятора, Ач -
Скорость без нагрузки, об/мин 3500 - 8500
Резьба шпинделя, мм M14
Диаметр диска, мм 125
Инструкция: https://documents.milwaukeetool.com/58-14-0266d1.pdf
M18 FSAG125XB
M18 FSAGV125XB
M18 FSAGV125XPDB
M18 FSAGV115XPDB - https://cdn.mlk-shop.ru/downloa....-in.pdf
2882-20, 2883-20, 2888-20, 2889-20
Схема 2888-20:
1 Red From Hall Board to Power Control Board
2 Pink From Hall Board to Power Control Board
3 Blue From Hall Board to Power Control Board
4 Yellow From Hall Board to Power Control Board
5 Black From Hall Board to Power Control Board
6 White From Power Control Board to Stator
7 Red From Power Control Board to Stator
8 Black From Power Control Board to Stator
9 Yellow From Power Control Board to On-Off Switch
10 Yellow From Power Control Board to On-Off Switch
11 Red From Power Control Board to Brake
12 Red Drom Battery Terminal Block to Brake
15 Black HV Wire. From Battery Terminal Block to Gearcase
16 Black From Power Control Board to Battery Terminal Block
17 Red From Power Control Board to Variable Speed Control
18 Green From Power Control Board to Variable Speed Control
19 Yellow From Power Control Board to Variable Speed Control
20 Red From Power Control Board to Capacitor Board
21 Black From Power Control Board to Capacitor Board
Запчасти:
8 34-40-0330 O-Ring (1)
11 05-90-0225 Spring Washer (6)
12 05-78-5316 M4 x 14mm Pan Hd. Taptite T-20 Screw (4)
17 43-34-3000 Backing Flange Disc (1)
18 44-40-7100 5/8" Flange Nut (1)
19 40-50-0386 Spring (1)
20 44-20-0091 Guard Locking Tang (1)
21 45-04-0031 M3 x 8.5mm Pan Washer Hd. Phillips Screw (1)
24 05-88-1255 M4 x 22mm Pan Hd. ST T-20 Screw (4)
25 02-04-0621 Ball Bearing (1)
26 44-86-2800 Bearing Retainer (1)
27 05-78-0105 M4 x 10mm Pan Hd. T-20 Screw (2)
28 05-55-0620 M5 Hex Nut (1)
29 --------------- Pinion Gear (1)
30 45-88-0406 Washer (1)
31 --------------- Rotor (1)
32 02-04-0111 Ball Bearing (1)
36 06-82-1087 M3 x 12mm Pan Hd. ST T-10 Screw (1)
37 06-82-2025 M3.5 x 16mm Pan Hd. ST T-10 Screw (6)
38 --------------- Right Housing Halve - Cover (1)
39 43-84-0207 Rapid Stop Plate (1)
40 --------------- Left Housing Halve - Support (1)
45 40-50-0243 Spring (1)
52 31-15-0103 Dust Cover (1)
53 42-62-0125 Side Handle Assembly (1)
54 43-54-1221 5" Type 27 Guard Assembly (Std. Equip. Shown) (1)
43-54-1230 5" Type 1 Guard Assembly (Optional, Not Shown) (1)
43-54-1200 4.5" Type 27 Guard Assembly (Optional, Not Shown) (1)
43-54-1210 4.5" Type 1 Guard Assembly (Optional, Not Shown) (1)
55 43-54-4010 5" Plastic Clip-On Guard Attach. (Not Shown) (1)
56 49-96-7215 Spanner Wrench (1)
57 12-20-0367 Service Nameplate (1)
58 50-55-3560 Contractor Bag (1)
60 14-29-0098 Gearcase Assembly (1)
61 23-40-6010 Rotor Assembly (1)
62 14-20-0197 Electronic Assembly (1)
63 14-38-0121 Housing Kit (1)
64 31-92-0257 Paddle Trigger Assembly (1)
66 14-73-2000 5/8"-11 Spindle Hub Assembly (1)
67 14-62-0300 Bearing Retaining Plate Kit (1)
