Аккумуляторный винтоверт TD091D 10,8В схема и ремонт
|
|
|
|
Anat78
|
Дата: Понедельник, 06.05.2024, 23:38 | Сообщение # 2
|
Администраторы
Anat78
Майор
- Сообщений:6643
- Репутация:54±
|

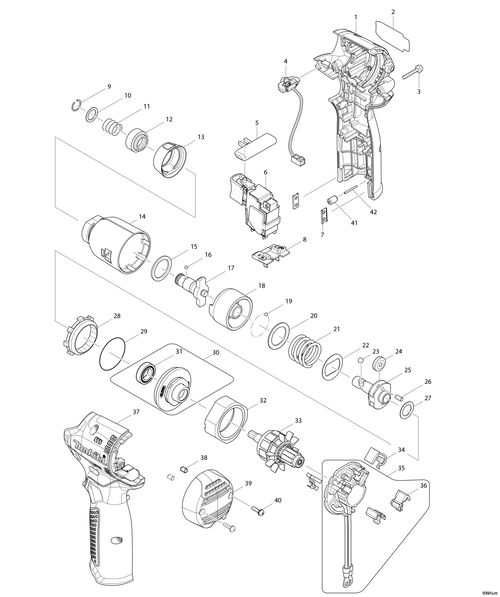

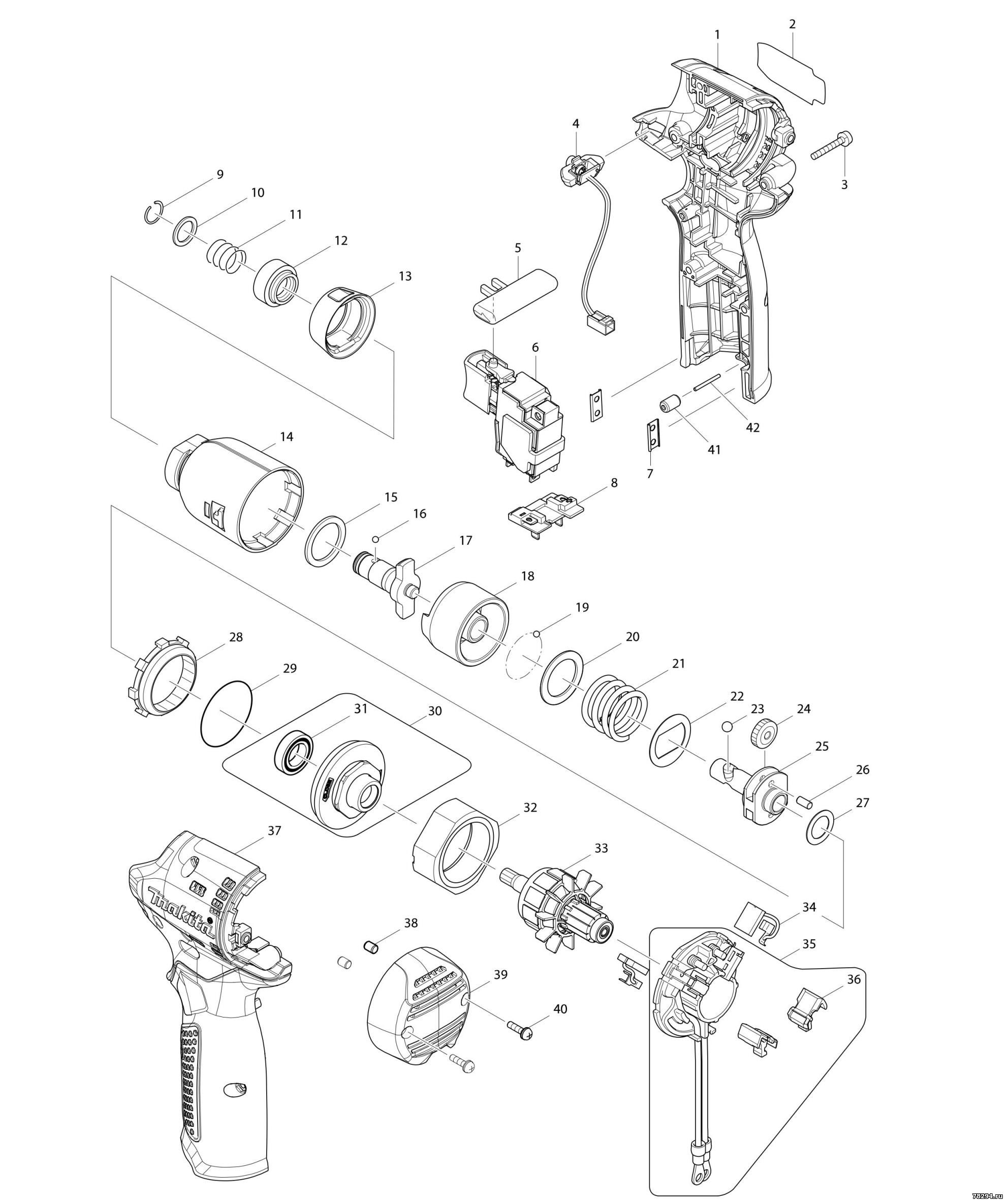

1 187572-3 HOUSING SET 1
1 D10 INC. 37

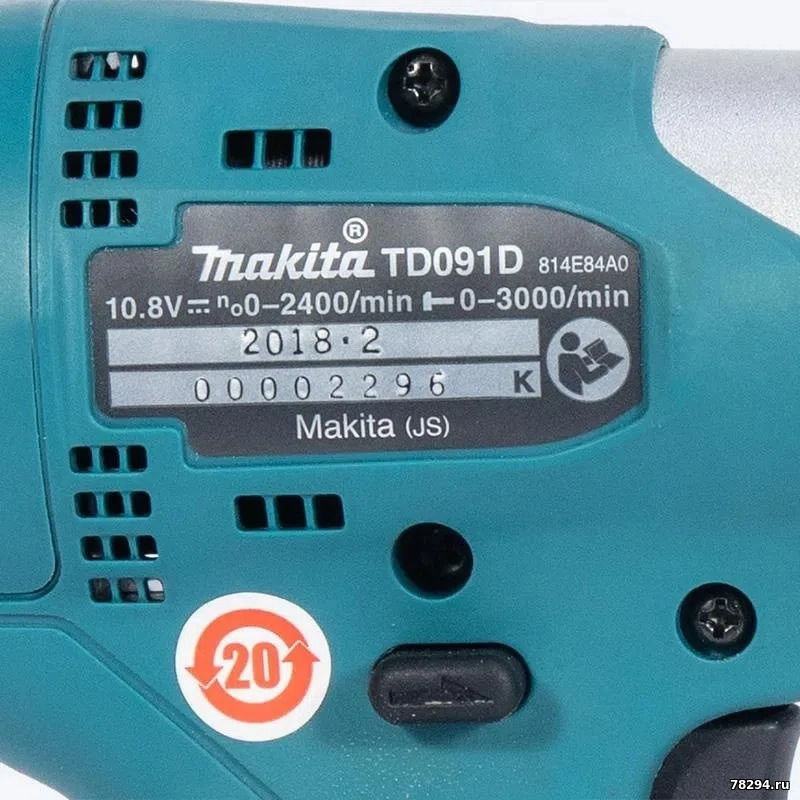

2 814G43-6 TD091D NAME PLATE 1
3 265095-2 PAN HEAD SCREW M3X20 6
4 620189-4 LED CIRCUIT 1
5 419041-9 F/R CHANGE LEVER 1

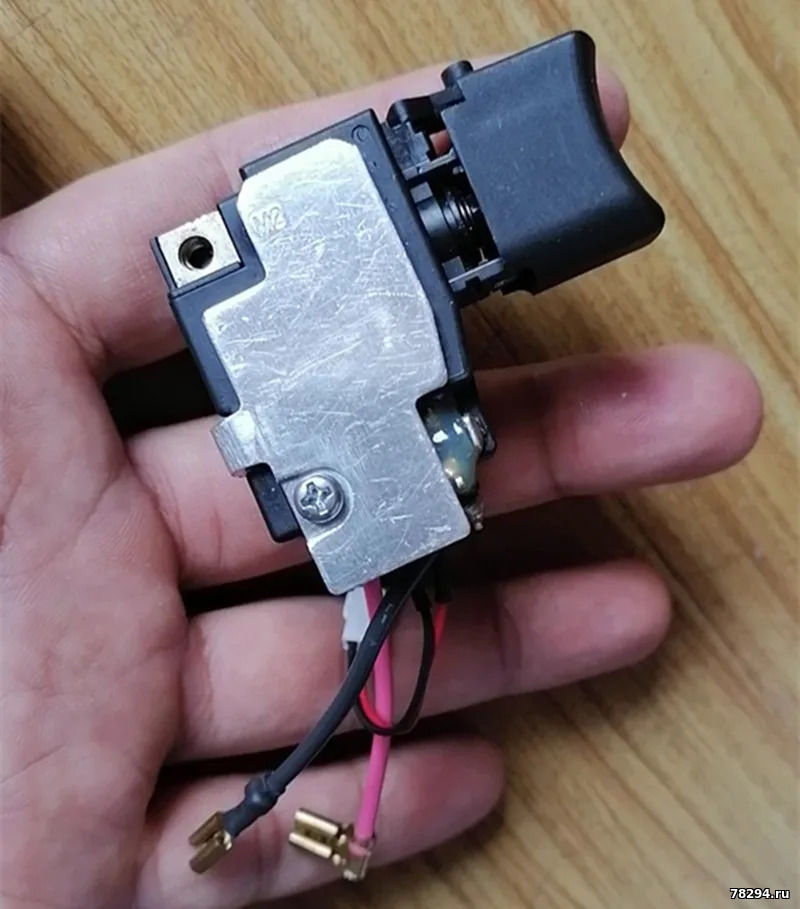

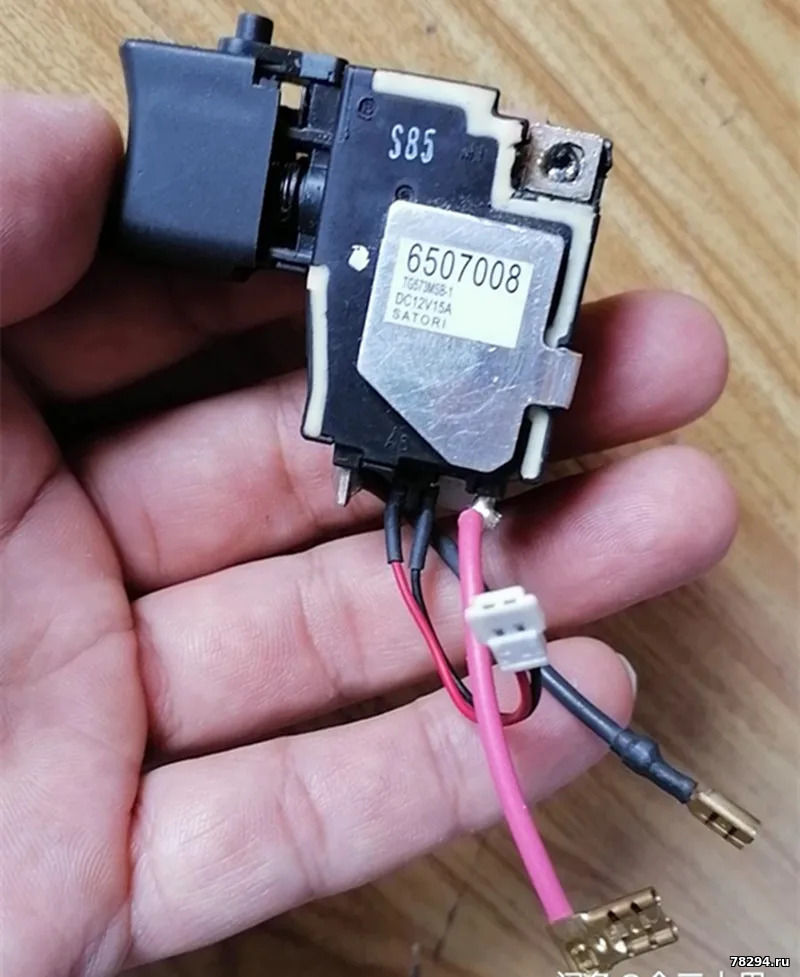

6 650700-8 SWITCH TG573MSB-1 1
7 345998-7 SET PLATE 2
8 643830-2 TERMINAL 1
9 231965-7 RING SPRING 10 1
10 267143-3 FLAT WASHER 11 1
11 233005-7 COMPRESSION SPRING 13 1
12 162352-8 SLEEVE 1
13 424550-5 BUMPER 1
14 141892-9 HAMMER CASE COMPLETE 1
14 C10 213166-9 O RING 12.5 1
15 261140-1 NYLON WASHER 20 1
16 216019-1 STEEL BALL 3 2
17 325618-9 ANVIL N 1
017-1 326629-7 ANVIL N 1
18 324894-2 HAMMER 1
19 216019-1 STEEL BALL 3 24
20 267380-9 FLAT WASHER 20 1
21 234217-5 COMPRESSION SPRING 21 1
22 267813-4 WASHER 21 1
23 216002-8 STEEL BALL 4.8 2
24 227213-0 SPUR GEAR 17 2
024-1 221437-0 SPUR GEAR 17 2
25 324897-6 SPINDLE 1
26 268217-3 PIN 3.5 2
27 253052-2 FLAT WASHER 12 1
28 227316-0 INTERNAL GEAR 43 1
29 213479-8 O RING 33 1
30 141893-7 BEARING BOX COMPLETE 1
30 D10 INC. 31
31 210112-3 BALL BEARING 6801LLB 1
32 638396-5 YOKE UNIT 1

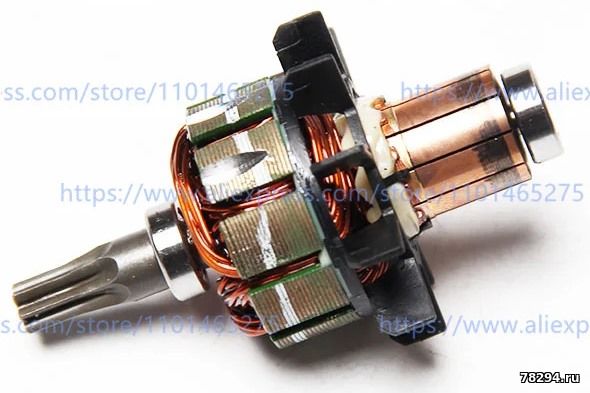

33 619320-7 ARMATURE 1
34 194427-5 CARBON BRUSH SET CB-440 1
034-1 198887-3 CARBON BRUSH CB-5 1
35 632A69-8 BRUSH HOLDER COMPLETE 1
35 D10 INC. 36
035-1 632N40-0 BRUSH HOLDER COMPLETE 1
035-2 638614-1 BRUSH HOLDER COMPLETE 1
36 689181-9 SPACER 2
37 187572-3 HOUSING SET 1
37 D10 INC. 1
38 263032-0 RUBBER PIN 4 2
039-1 455357-8 REAR COVER 1
40 266816-5 + PAN HEAD SCREW M3X12 WITH WR 2
41 263038-8 RUBBER PIN 6 1
42 268284-8 PIN 1.5 1
A01 ***DC10WA DC10WA BATTERY CHARGER 1
A02 194550-6 BATTERY BL1013 SET 2
A02-1 196066-7 BATTERY BL1013 SET 2
A03 141740-2 PLASTIC CASE COMPLETE 1
A03 C10 417724-5 LATCH 2
